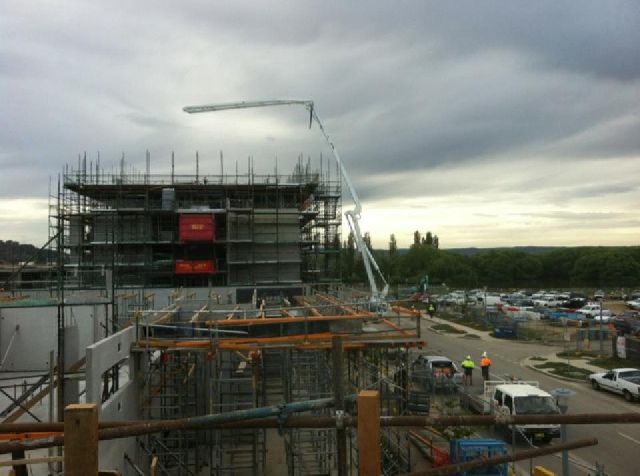

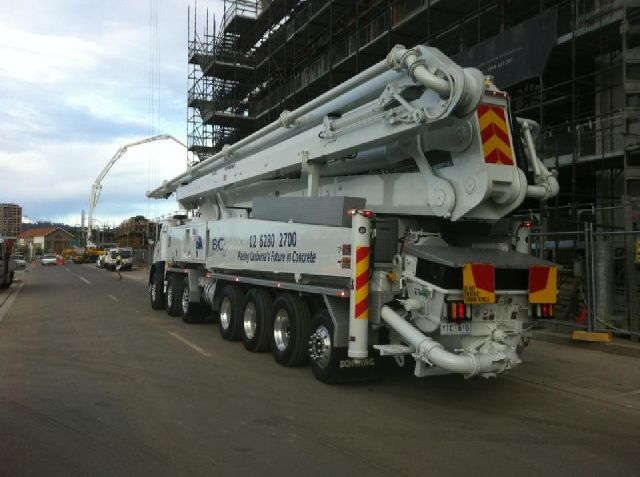

biggest pump in AUSTRALIA 61m schwing
pumpaholik 11-15-2011
comment profile send pm notify


pumpaholik 11-15-2011
reply profile send pm notify


Many 11-15-2011
reply profile send pm notify

Nice looking unit,hope ya have alot of plastic


lucky phil 11-15-2011
reply profile send pm notify

Very nice pump!! were abouts are you in Aust? we have trouble gettin the 53 on the road in Vic!


PUMBO 11-15-2011
reply profile send pm notify

Nice machine. You better stock up on parts, rumor is Schwing may not be round for long.


Boom Inspector 11-16-2011
reply profile send pm notify

   You will enjoy this machine once you get past the fear of such a monster. Sealed A couple things that may interest you on the 61M ,pay close attention when you are pumping to the reducer next to the hopper. There were a few issues with this model when they first came out with the pipe holders in that area breaking and reinforcements had to be added. I have some pictures of a couple I worked on at my website http://www.cbinspection.com/gallery.html . They are the holders at top of the reducer above drivers side rear fender. Its an easy fix for a welder if you do experience issues there.

  One other thing, I found operators that have bent the tip by by dragging too much hose left to right just be aware of the recommended hanging weight of the tip hose to the boom and you will be ok. And always remember to open the #2 section first ,but thats a no brainer Laughing The set up is a bit to get used to also with the outrigger pads that hang on the rear outriggers and have to be added manuelly on each set up. But you will get used to it fairly quickly. Overall you will enjoy this model and if you respect and take care of it , it will give you and your company many years of good service.



  @Pumbo, Schwing is here to stay from the "rumors" I have heard. They are in the process of bringing people back too so that is a good sign.


concreteluvr 11-16-2011
reply profile send pm notify

Boom,

Why do you think Schwing didnt design the 61 as a 5 section??? Great pump but as a 4???




Boom Inspector 11-16-2011
reply profile send pm notify

concreteluvr, this is only a guess. But I reckon it was due to the track record they enjoyed with the 45 and 47 meter booms.


FunnyBoom 11-16-2011
reply profile send pm notify

I know we have spoke about this before but isn't that my 61 in those pictures on your site?


Boom Inspector 11-16-2011
reply profile send pm notify

yea it is funnyboom,hope the repairs have held ?


FunnyBoom 11-16-2011
reply profile send pm notify

Yes sir, you did a great job. i was just checking them out again today. i have it in Pittsburgh, Pa on a steel mill now. Here for the next year or so


GARCIA 11-17-2011
reply profile send pm notify

grtzzz GARCIA


MICHAEL J 11-23-2011
reply profile send pm notify

WHAT A GREAT JOB GLOBAL BETON AND AUSTRALIAN ASSOSIATES TOGETHER WITH CONCRETE PUMP REPAIR HAVE DONE GETTING THIS MAGNIFACENT PUMP IN AUSTRALIA. THERE SHOULD BE MORE OF THIS QUALITY IN BOOM PUMPS COMING INTO AUSTRALIA SO WE DON'T GET FULL OF RUBBISH THAT SOME PEOPLE WANT TO BRING IN.
