Everdigm ECPM39
reggi 03-17-2015
comment profile send pm notify

This concrete pump is performing extremely well, Everdigm has come long way

with thieir concrete boom pumps , this M39 is pumping 150 to 300 meters of 50 mpa and 80 mpa concrete

at about a 60 to 80 meter hour pumping rate , we have allso used it in high rise pumping , it pushed up to level

20 doing about 180 to 220 bar presser  at a pumping rate of 50 to 60 cubic hour .. This is a very good all round

 concrete pump .




reggi 03-17-2015
reply profile send pm notify

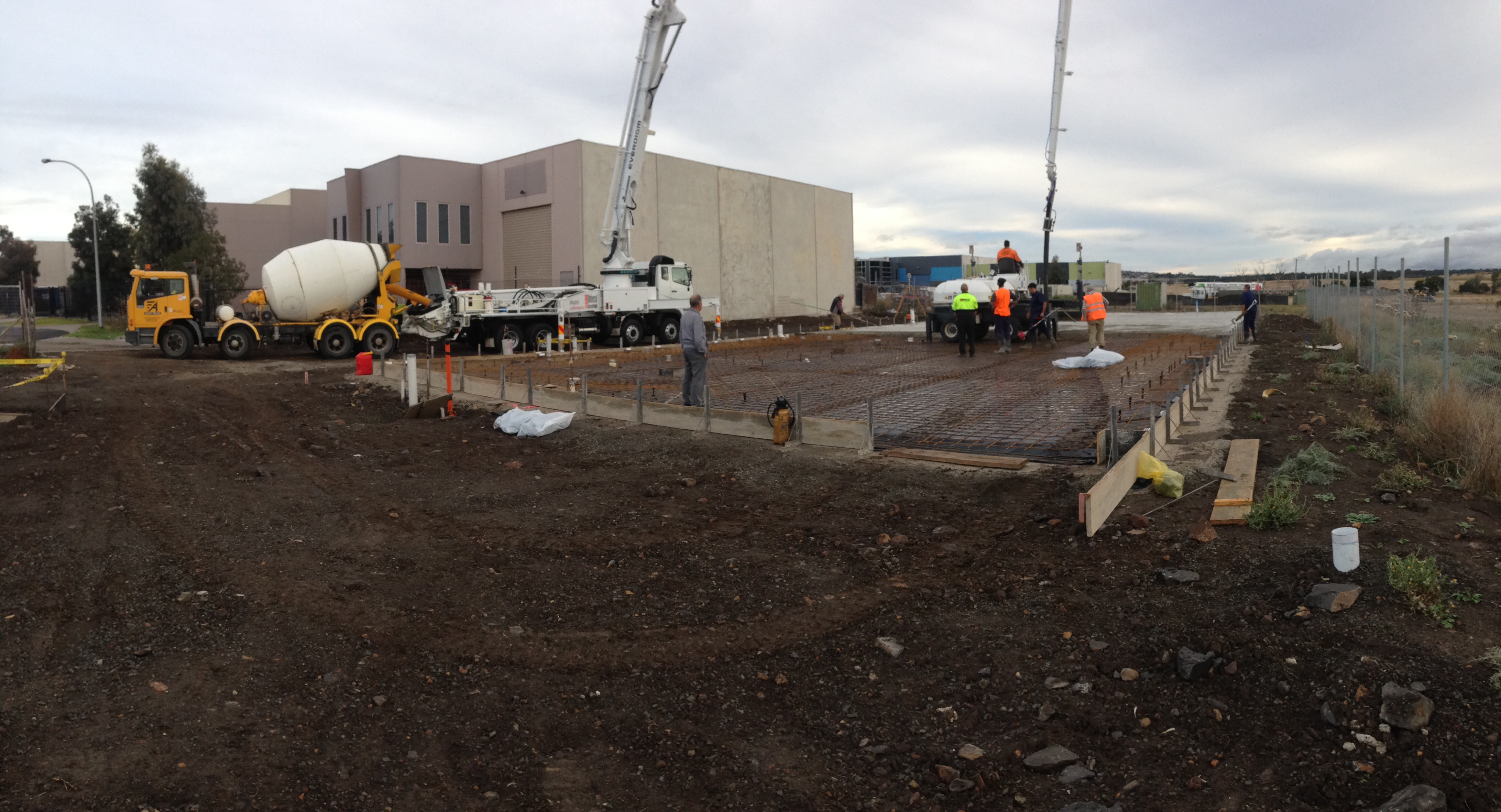

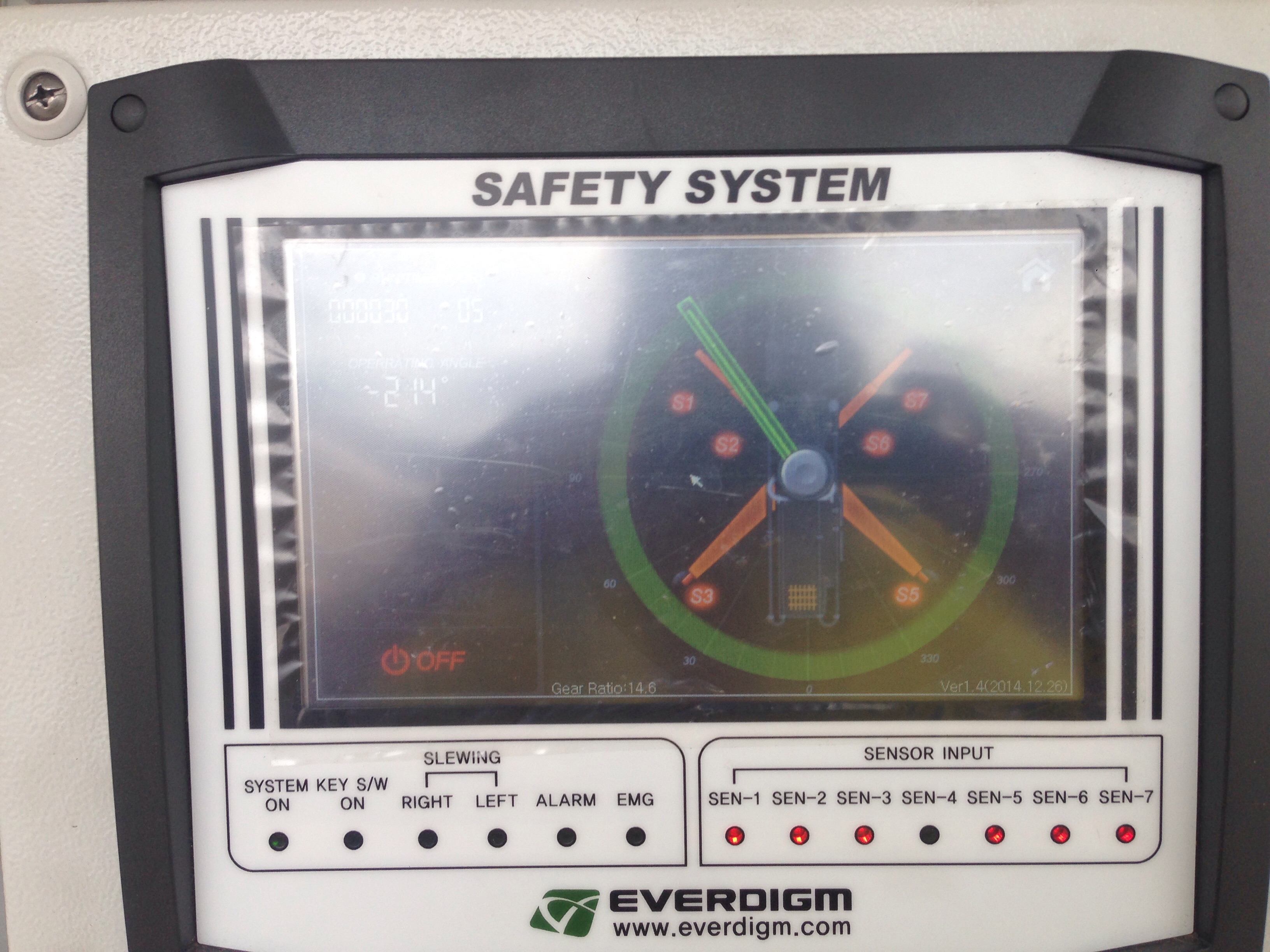

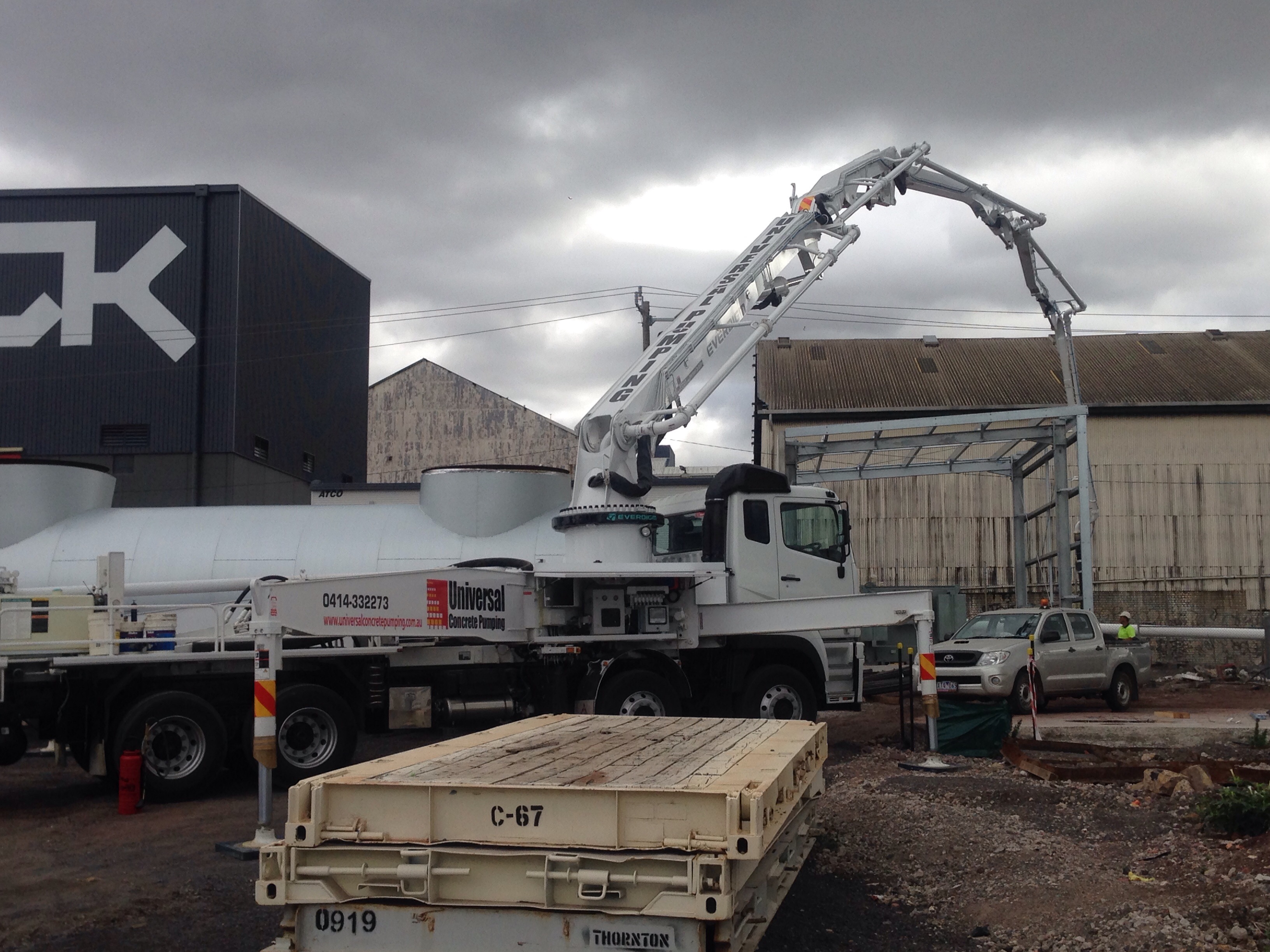

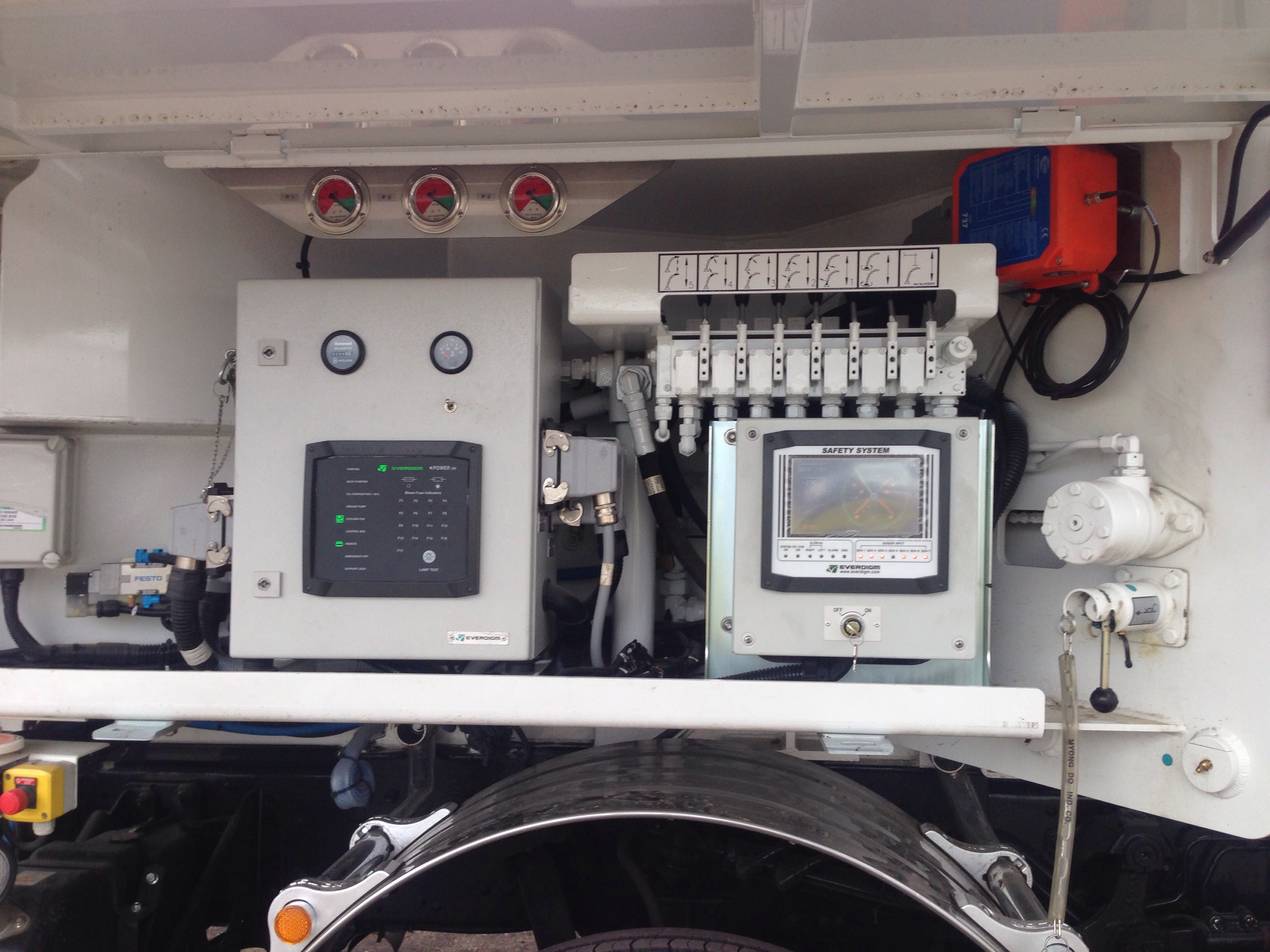

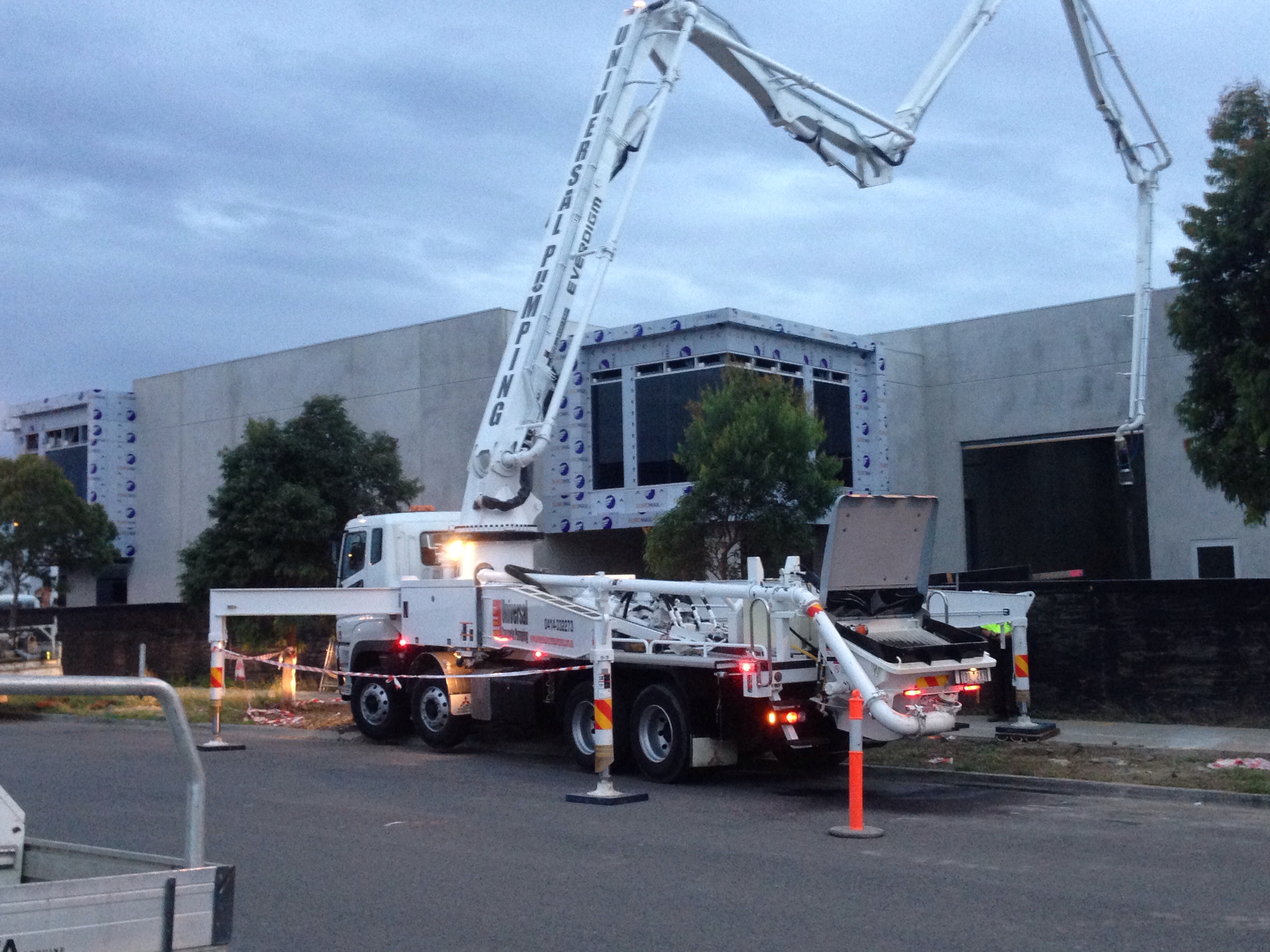

More pic


Everdigm_01 03-17-2015
reply profile send pm notify

Reggi, we are glad to see that you are happy with our pump.

ECP39CX-5 was the BEST selling model in Y2014 and will continue to be one of the best models in its class.
5-section ZR-folding boom with vertical reach of 125'8" (38.3m), horizontal reach of 112'8" (34.3m) and depth reach of 87' (26.5m). Theoretical concrete output of 210yd3/h (160m3/h) with theoretical concrete pressure of 1,233 psi (85 bar). OSS (Side Support) comes standard with ECP39CX.

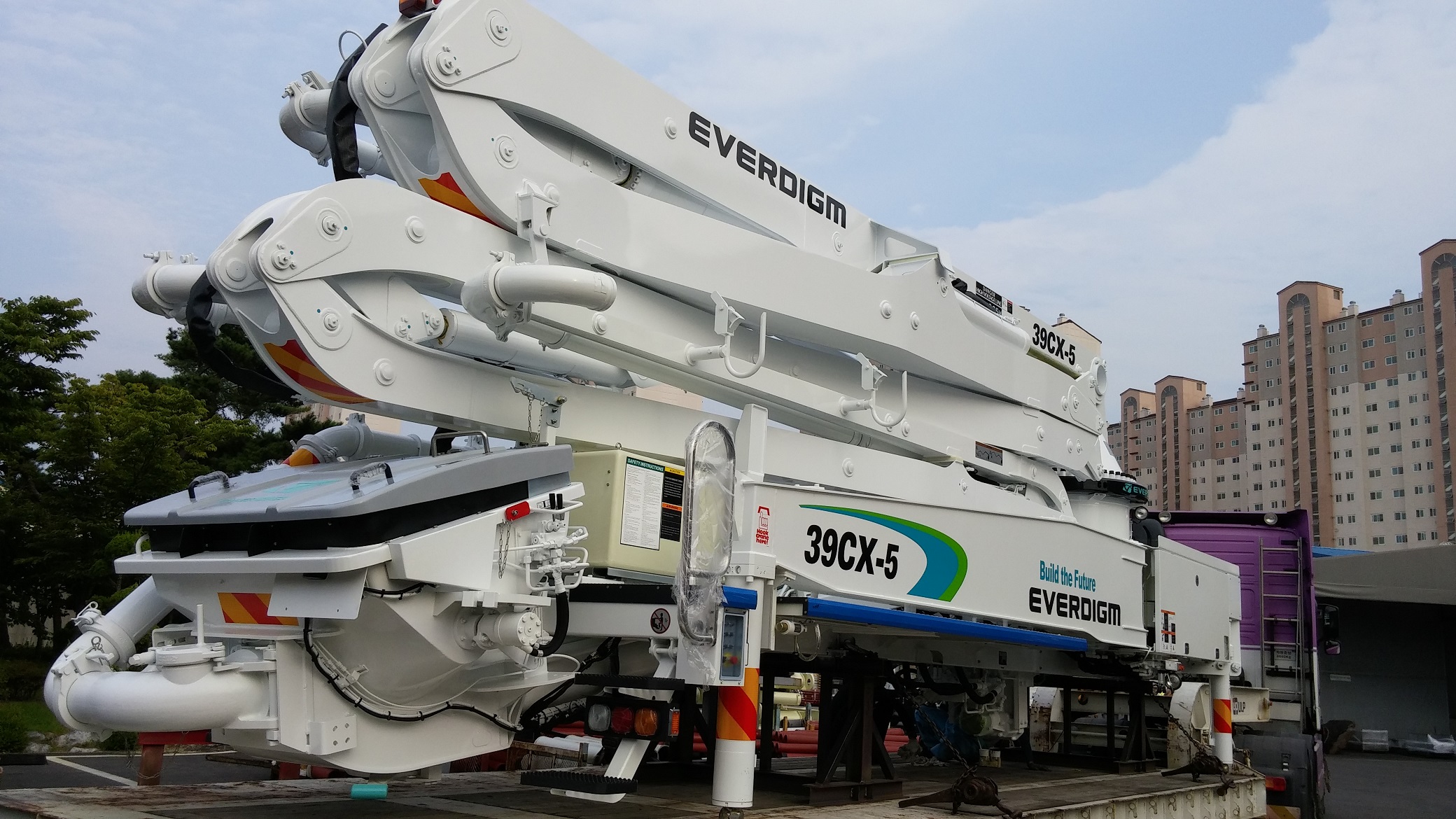

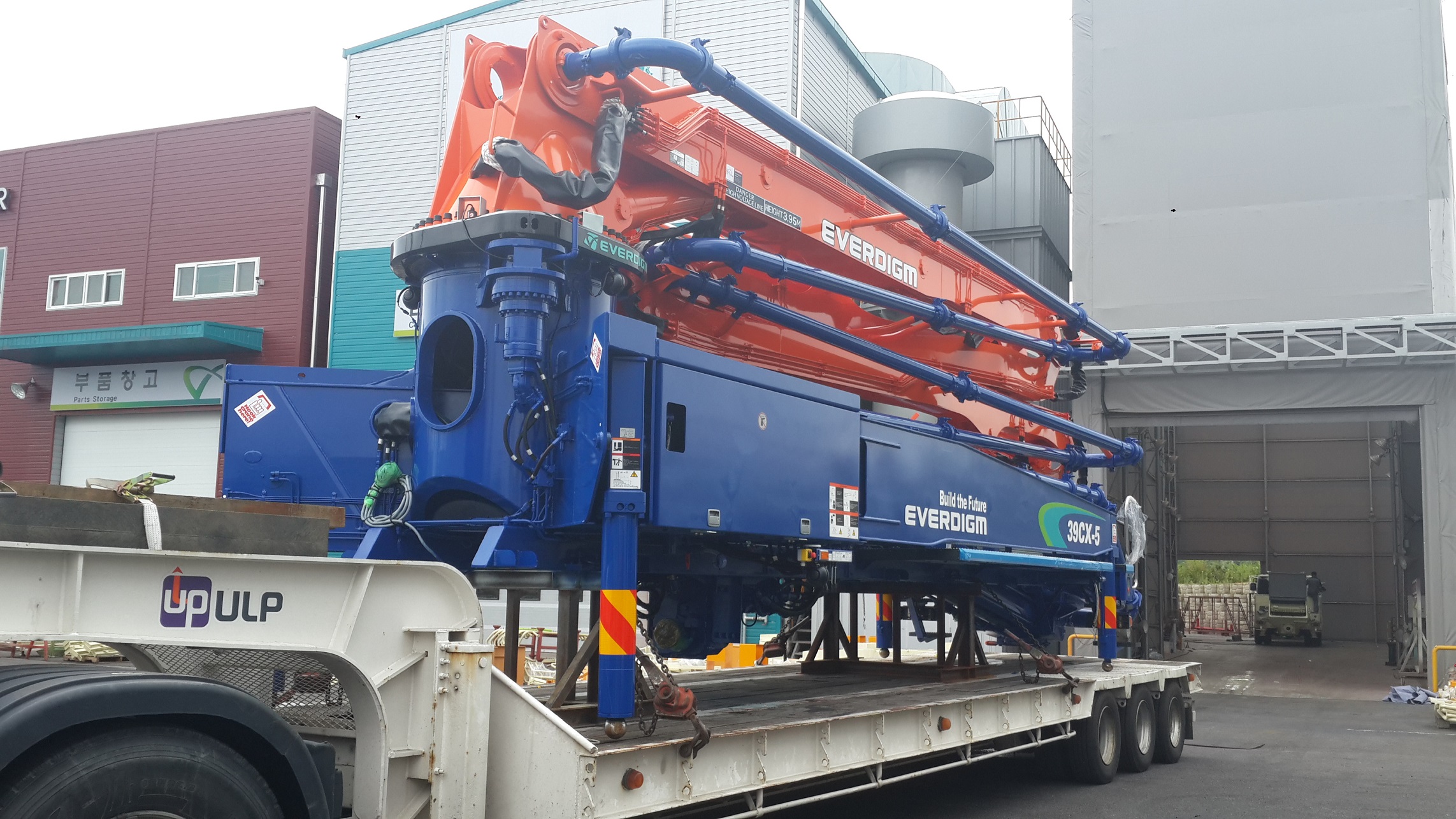

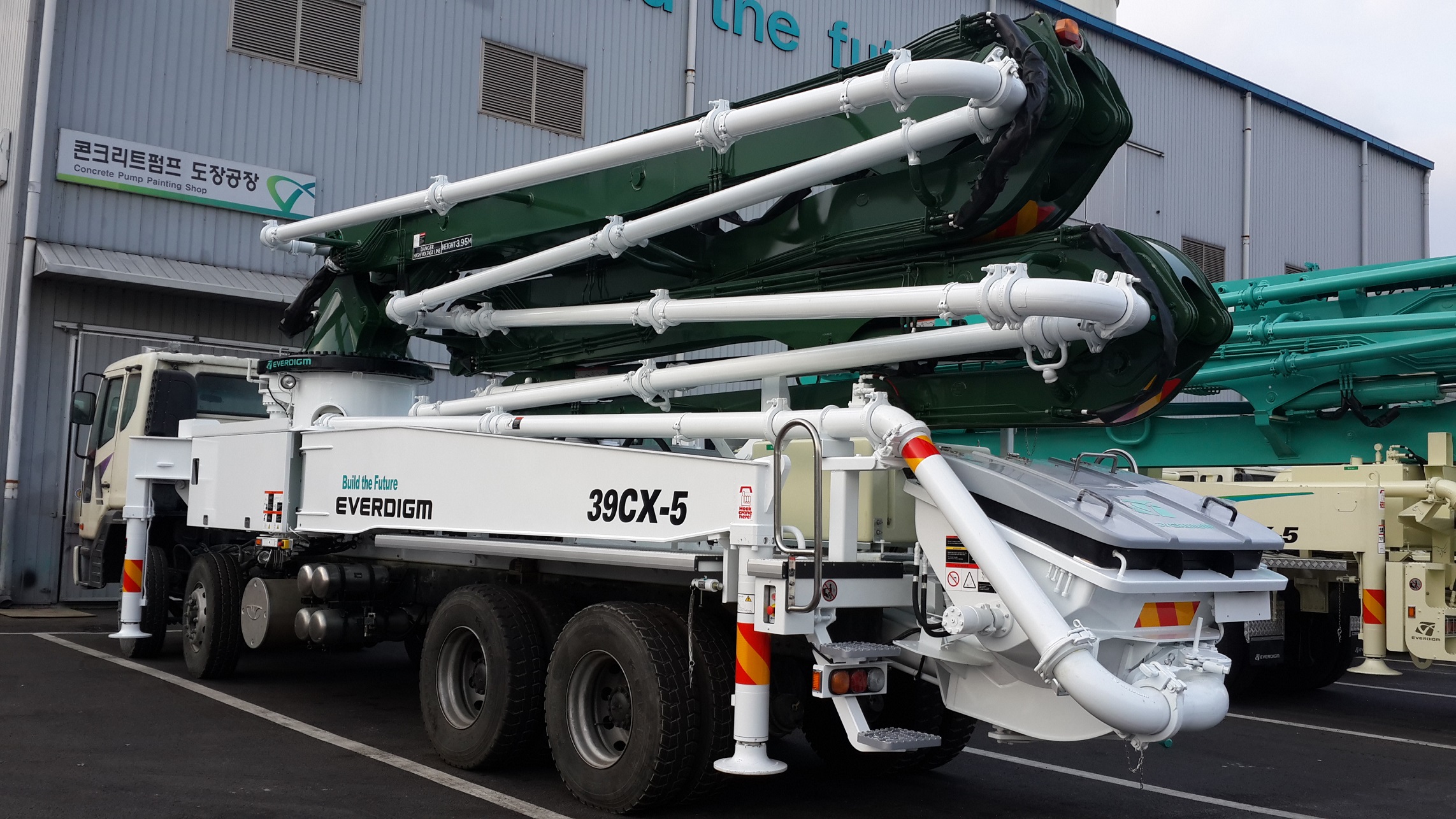

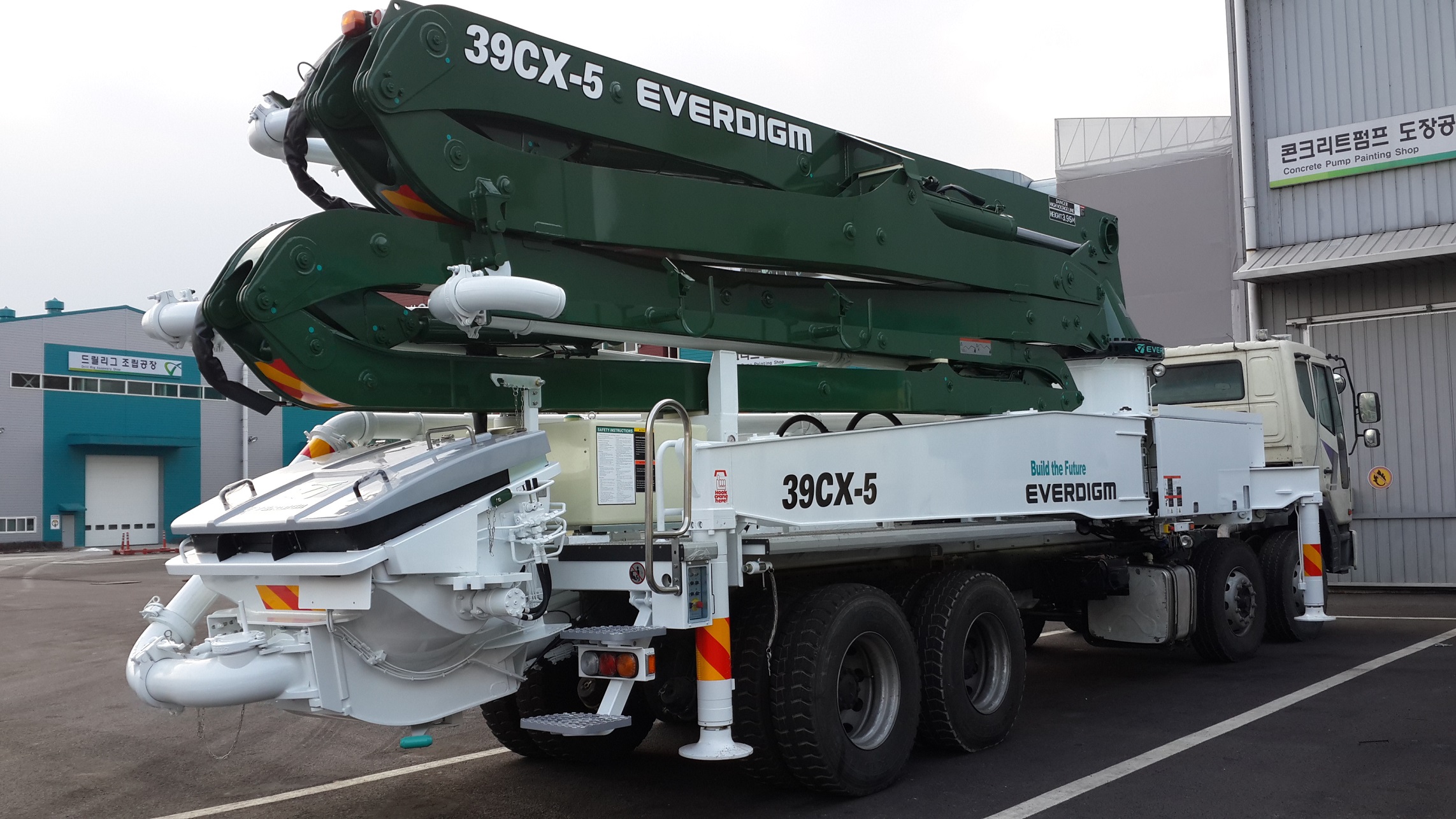

Picture of ECP39CX that just came out of the paint shop.
