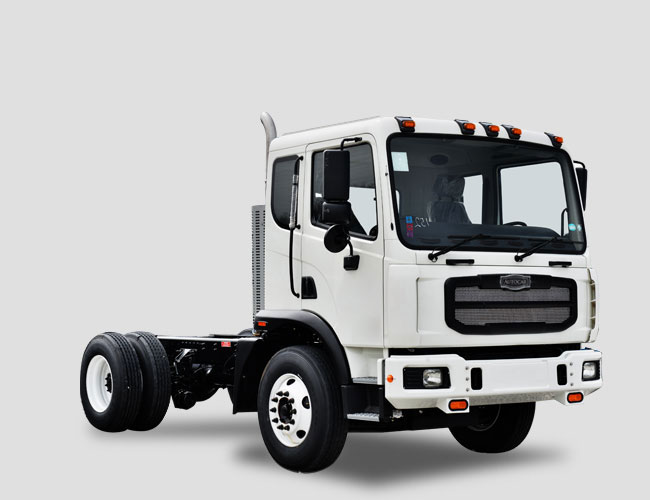

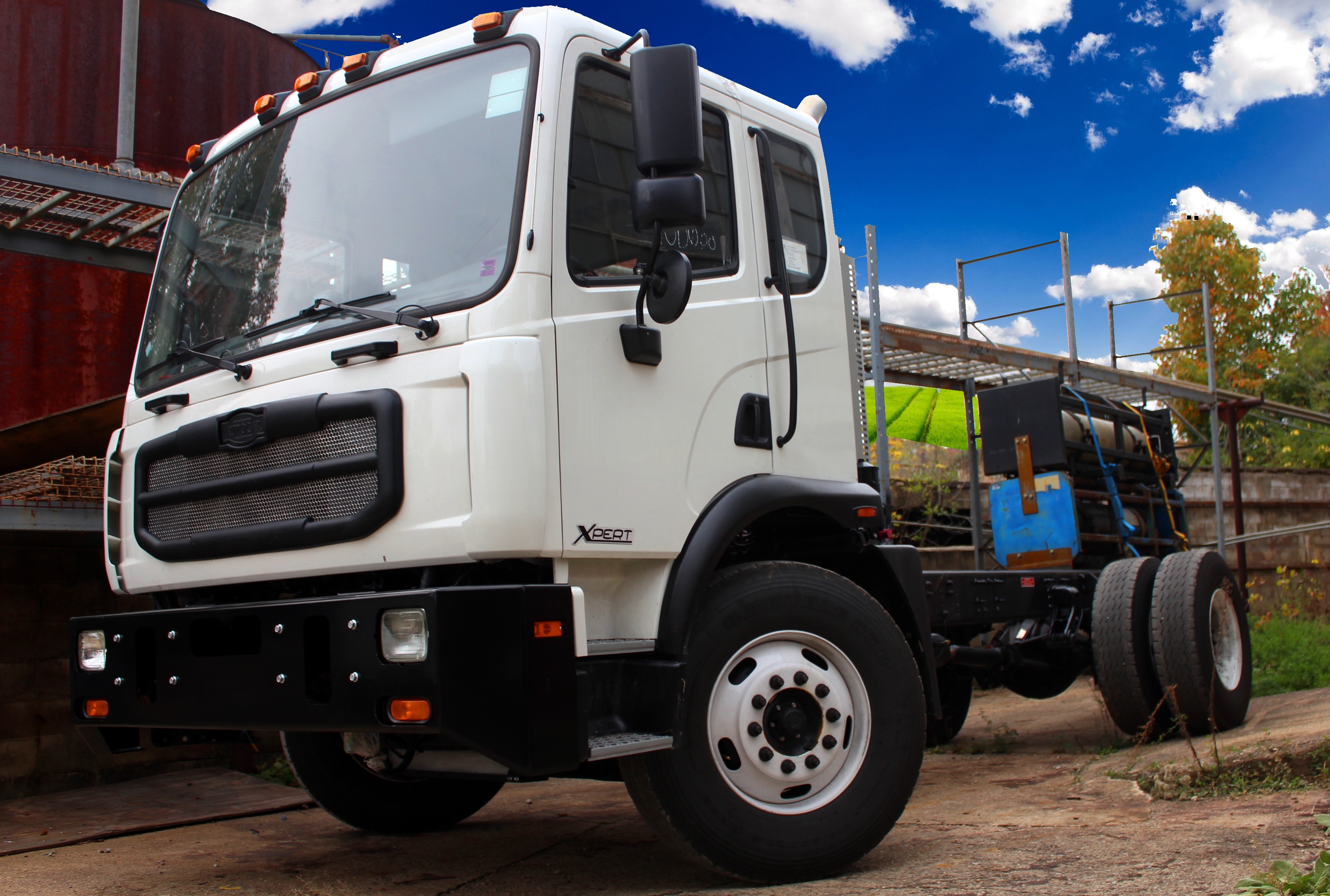

Autocar Introduced their NEW ACMD-Xpert in 2012 to the vocational truck marketplace in Class 7 & Baby 8 GVWR configurations.

Since then, the ACMD model offering has expanded to include Cummins ISB6.7 Clean Diesel in 200, 220, 240, 260 & 280 hp ratings with Allison 2500RDS, 3000 or 3500RDS automatic transmissions.  The 2500RDS transmission is limited to 33,000 lbs., or Class 7 GVWR.  Cummins ISL9 (9 Liter) Clean DIesel engine is now available in 250, 270, 285, 300, 330 & 345 hp ratings with Allison 3000 or 3500RDS automatic transmissions in 5 or 6 speed format.  FAWR in 12, 13.2, 14.6 and now 16,000 lbs. ratings with steel leaf springs.  Single rear axle ratings range from 21, 23, 26 & 30,000 lbs.  Air ride rear suspension are available in 21, 23 & 26K ratings.  Otherwise, steel leaf spring is standard.  This fall Autocar will introduce ACMD64 with tandem rear drive axle configurations, rated in 40 & 46,000 lbs. with Hendrickson HMX or PAX-EX air ride suspensions.  The ACMD is built like a HD Class 8 chassis, with formed "C" channel rails measuring 10" tall x .38" thick, with a .25" frame liner available where required.  Various wheelbase, A/F and exhaust after treatment treatment locations are available in either LH Vertical, or RH horizontal rail mounted.

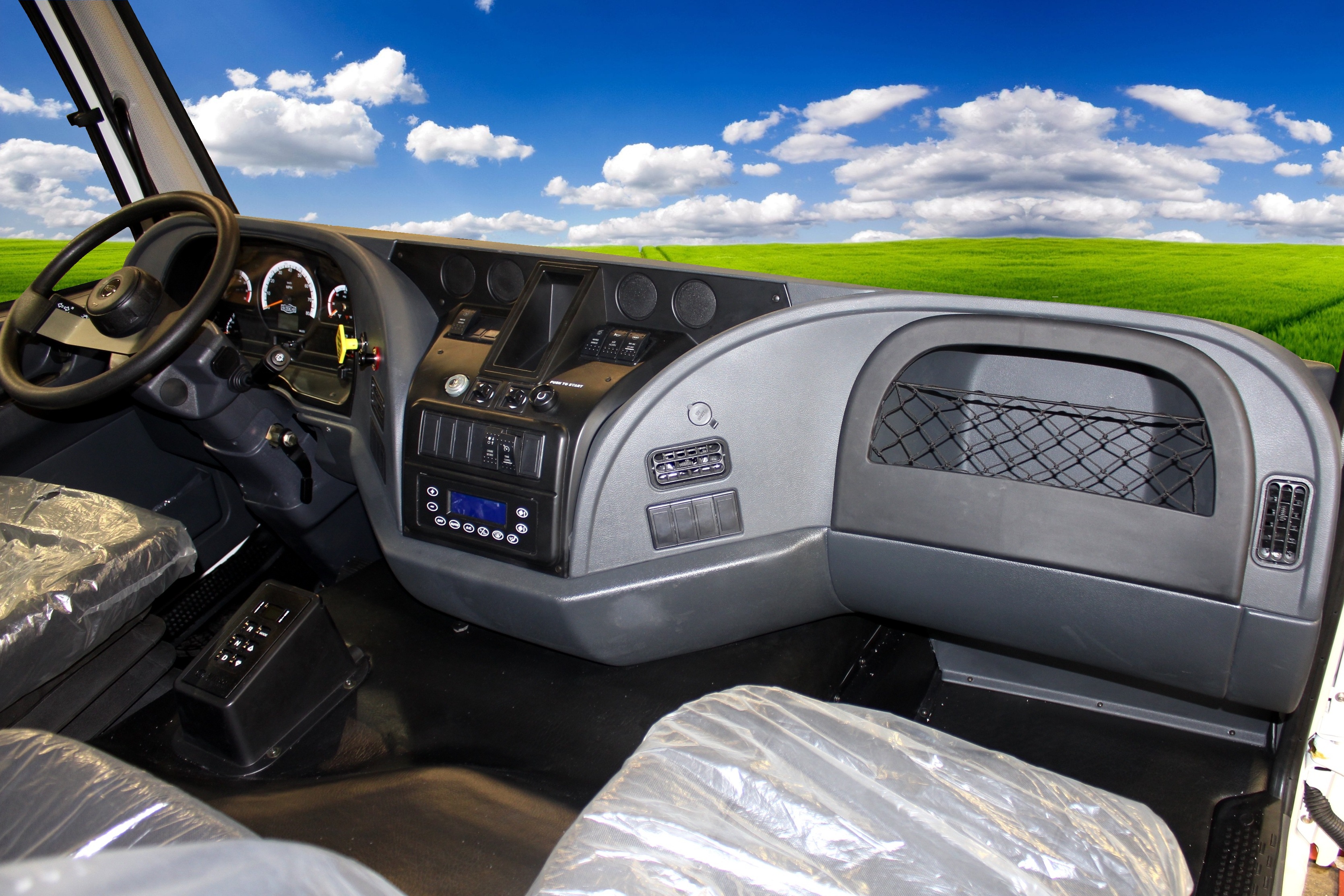

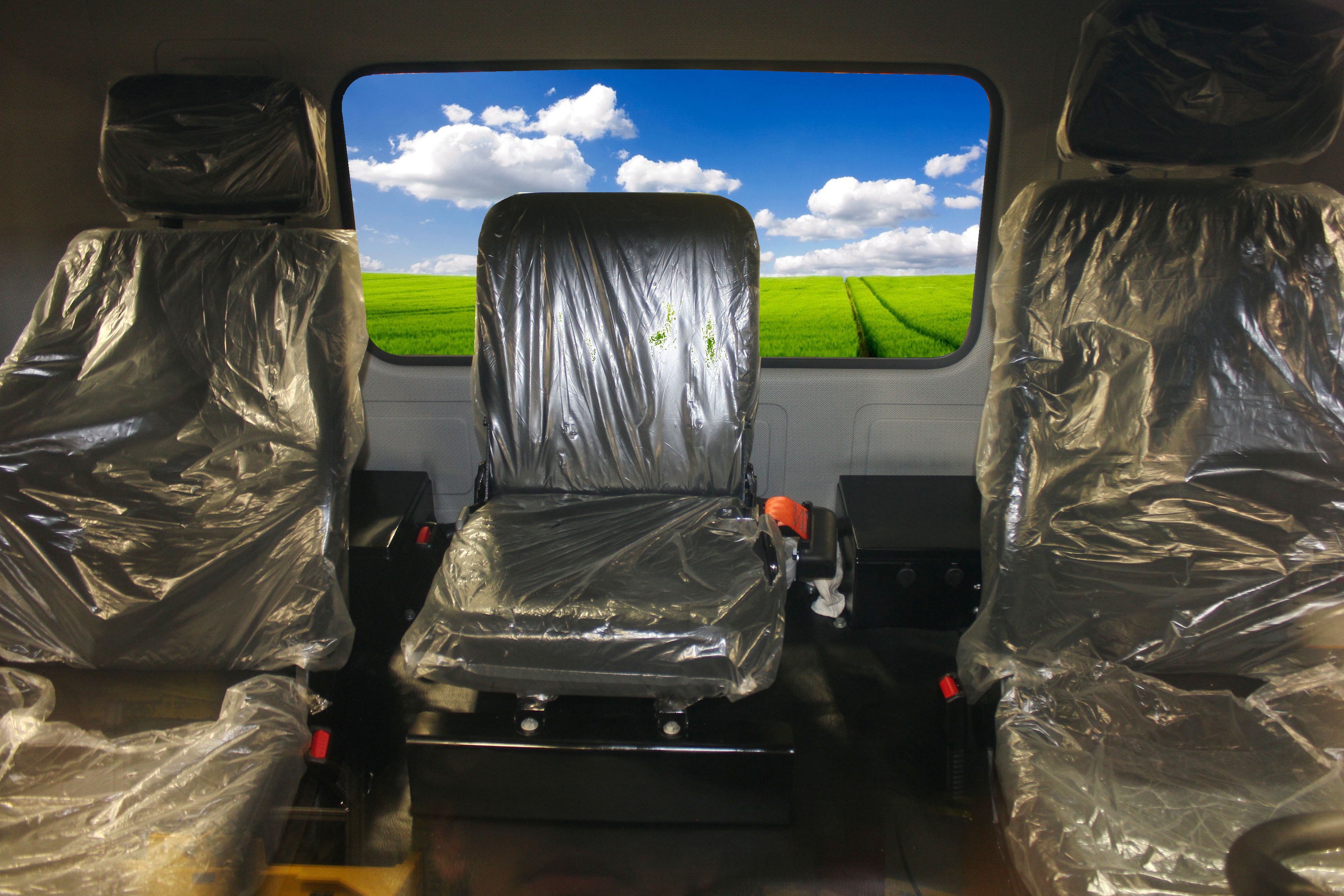

The ACMD-Xpert tilt cab is even more spacious than ACX in 2 or 3 person seating configurations.  The ACMD-Xpert is a perfect choice for truck mounted line pump, and even mid-size boom pumps up to 32 - 34M depending on configuration & overall weight.  The Xpert is a moderatley priced chassis with a medium duty, 9 liter drivetrain and transmission, where more costly 12 liter engines and heavy duty transmissions are not required to do the job.  Look for more information about Autocar ACMD-Xpert at www.autocartruck.com.  General dimension drawings, specification guides and brochures for both ACX-Xpeditor and ACMD-XPert are available on line.  Or write me for more information.  Thank you!
